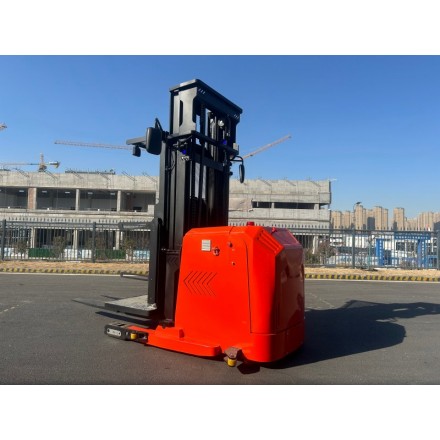

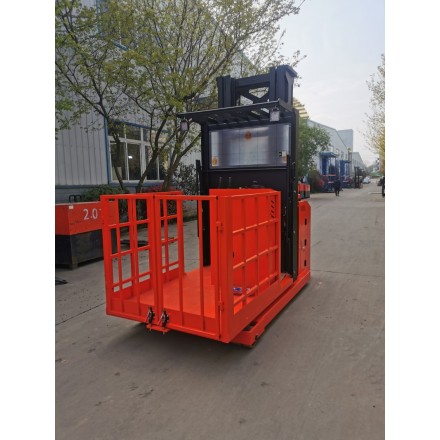

High-level order picker operation, overall light weight, good mobility, suitable for one person;
Wide field enhances operator driving safety;
Lowering buffering increases the overall safety;
Double protection legs structure, more secure, close to ground;
Equipped with horn to ensure the driving safety.
| Characteristic | 1.1 | Model | CDD10X-45 | CDD15X-45 | |
| 1.2 | Power(electricity,diesel,LPG,petrol,manual) | Order picker | Order picker | ||
| 1.3 | Operation(manual,walkie,side-standing,picker) | Q(kg) | 1000 | 1500 | |
| 1.4 | Rated load capacity | C(mm) | 500 | 500 | |
| 1.5 | Wheelbase | Y(mm) | 1425 | 1845 | |
| Weight | 2.1 | Service weight(incl.battery) | kg | 2600 | 3000 |
| Wheel/ Chassis | 3.1 | Wheeltype (The front/rear) | PU solid tyre | PU solid tyre | |
| 3.2 | Front wheelspecification | ø×w(mm) | φ180*76 | φ180*76 | |
| 3.3 | Drive wheel specification | ø×w(mm) | φ254*102 | φ382*142 | |
| 3.4 | Balance Wheel specification | ø×w(mm) | φ125*50 | / | |
| 3.5 | Tread,front | b10(mm) | 1010 | 1160 | |
| 3.6 | Tread,rear | b11(mm) | 784 | / | |
| Dimensions | 4.1 | Lift height | h3(mm) | 4500 | 4500 |
| 4.2 | Mast height,extended | h4(mm) | 6670 | 6670 | |
| 4.3 | Overhead guard height | h14(mm) | 2210 | 2210 | |
| 4.4 | Vehicle length | 12(mm) | 1865(excl.forks) | 2500(excl.forks) | |
| 4.5 | Vehicle width | b1(mm) | 1130 | 1300 | |
| 4.6 | Forks dimensions | s/e/l(mm) | 35/100/920 | 40/122/920 | |
| 4.7 | Forks adjustment dimensions | b5(mm) | 210-770 | 210-770 | |
| 4.8 | The min.ground clearance(Wheelbase center) | m2(mm) | 50 | 60 | |
| 4.9 | Stacking aisle width,pallet 1m×1.2m(1.2m cross forks) | Ast(mm) | 3256 | 3670 | |
| 4.10 | The min.turning radius(pedalfolded/unfolded) | Wa(mm) | 1657 | 2140 | |
| Peformance | 5.1 | Travelling speed,unladen/full-loaded | km/h | 5/3 | 5/3 |
| 5.2 | The max.gradability,unladen/full-loaded | % | 10/6 | 10/6 | |
| 5.3 | Service brake | Electromagnetic | Electromagnetic | ||
| Motor | 5.4 | Drive motor power | kw | 2.5 | 6.5 |
| 5.5 | Lift speed unladen/full-loaded | m/s | 0.110/0.100 | 0.275/0.215 | |
| 6.1 | Lower speed unladen/full-loaded | m/s | 0.75/0.80 | 0.150/0.195 | |
| 6.2 | Lift motor power | kw | 3 | 7.5AC | |
| 6.3 | Battery type | Lead-acid | Lead-acid | ||
| 6.4 | Battery voltage/capacity | V/Ah | 24/300 | 48/300 | |
| 6.5 | Charger | V/A | 24/40 | 48/40 | |
| Others | 7.1 | Drive control mode | AC | AC | |
| 7.2 | Noise level at driver's ears accordingto En12053 | dB(A) | 75 | 75 |
