Large

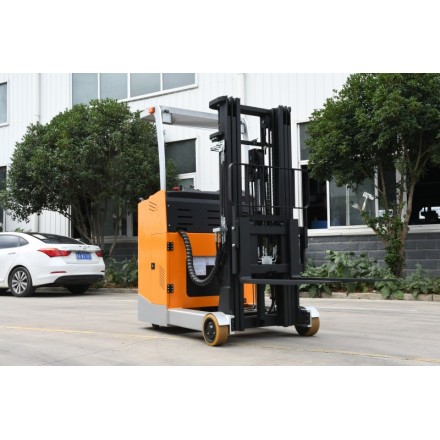

Compact structure, high maneuverability. Low gravity center with good stability. It suits large tonnage, high lifting goods storage scenarios;
It features in overall mast moving forward, with small turning radius to neglect obstacles at the bottom of the racks. It suits any space-limited scenarios, easy loading or unloading goods;
Equipped with branded control system and multi-functional protection system, it offers a higher level functional safety;
Equipped with vertical branded gear box, multi-functional solutions and flexible module construction system. Optimized gear meshing technology can reduce the noise and offer high performance and efficiency;
EPS steering energy reduces 20% with accurate operation, flexible steering, relieving operators pressures and greatly improving the production ability;
Equipped with full AC drive system, small volume, light weight, high efficiency, free-maintenance and carbon-brush replacement. No more maintenance and protection.
| Characteristic | 1.1 | Model | CQD12D-45S | CQD15D-45S | CQD20D-45S | |
| 1.2 | Power(electricity,diesel,LPG,petrol,manual) | Electric | Electric | Electric | ||
| 1.3 | Operation(manual,walkie,side-standing,picker) | Side-standing | Side-standing | Side-standing | ||
| 1.4 | Rated load capacity | Q(kg) | 1200 | 1500 | 2000 | |
| 1.5 | Load center distance | C(mm) | 500 | 500 | 500 | |
| 1.6 | The front overhang distance | X(mm) | 145 | 145 | 145 | |
| 1.7 | Wheelbase | Y(mm) | 1399 | 1399 | 1584 | |
| Weight | 2.1 | Service weight(incl.battery) | kg | 2200 | 2200 | 2300 |
| Wheel/ Chassis | 3.1 | Wheel type | PU | PU | PU | |
| 3.2 | Front wheel specification | ø×w(mm) | φ254*104 | φ254*104 | φ254*104 | |
| 3.3 | Drivewheel specification | ø×w(mm) | φ230*75 | φ230*75 | φ230*75 | |
| 3.4 | Balance Wheel specification | ø×w(mm) | φ150*50 | φ150*50 | φ150*50 | |
| 3.5 | Tread,front | b10(mm) | 978 | 978 | 978 | |
| 3.6 | Tread,rear | b11(mm) | 804 | 804 | 804 | |
| Dimensions | 4.1 | Vehicle height,mast retracted | h1(mm) | 2120 | 2120 | 2120 |
| 4.2 | Liftheight | h3(mm) | 4500 | 4500 | 4500 | |
| 4.3 | Mast height,extended | h4(mm) | 5485 | 5485 | 5485 | |
| 4.4 | Overhead guard height | h14(mm) | 2308 | 2308 | 2308 | |
| 4.5 | Forks height,mast retracted | h13(mm) | 35 | 35 | 40 | |
| 4.6 | Mast/forkstilting angle(the front/the rear) | a/β(°) | 3/5 | 3/5 | 3/5 | |
| 4.7 | Vehicle bodylength (incl.forks) | l1(mm) | 2272 | 2272 | 2460 | |
| 4.8 | Vehicle body length(excl.forks) | 12(mm) | 1703 | 1703 | 1888 | |
| 4.9 | Vehicle body width | b1(mm) | 1098 | 1098 | 1098 | |
| 4.10 | Forks dimensions | s/e/l(mm) | 35/100/1070 | 35/100/1070 | 40/122/1070 | |
| 4.11 | Forks adjustment dimensions | b5(mm) | 210-705 | 210-705 | 244-705 | |
| 4.12 | Forward moving distance | L(mm) | 500 | 500 | 600 | |
| 4.13 | The min.ground clearance(Wheelbase center) | m2(mm) | 77 | 77 | 77 | |
| 4.14 | Stacking aisle width,pallet1m×1.2m(1.2m cross forks) | Ast(mm) | 2771 | 2771 | 2880 | |
| 4.15 | The min.turning radius | Wa(mm) | 1600 | 1600 | 1781 | |
| Peformance | 5.1 | Travelling speed,unladen/full-loaded | km/h | 5/4 | 5/4 | 5/4 |
| 5.2 | Lift speed unladen/full-loaded | m/s | 0.135/0.115 | 0.135/0.110 | 0.135/0.100 | |
| 5.3 | Lowerspeed unladen/full-loaded | m/s | 0.085/0.120 | 0.085/0.132 | 0.085/0.140 | |
| 5.4 | The max.gradability,unladen/full-loaded | % | 8/6 | 8/4 | 8/4 | |
| 5.5 | Servicebrake | Electromagnetic | Electromagnetic | Electromagnetic | ||
| Motor | 6.1 | Drive motor power | kw | 1.5 | 2.5 | 2.5 |
| 6.2 | Lift motorpower | kw | 3 | 3 | 3 | |
| 6.3 | Battery type | Lead-acid | Lead-acid | Lead-acid | ||
| 6.4 | Battery voltage/capacity | V/Ah | 24/280 | 24/280 | 24/280 | |
| 6.5 | Charger | V/A | 24/40 | 24/40 | 24/40 | |
| Others | 7.1 | Drive control mode | AC | AC | AC | |
| 7.2 | Noise level at driver'sears accordingto En12053 | dB(A) | 75 | 75 | 75 |
