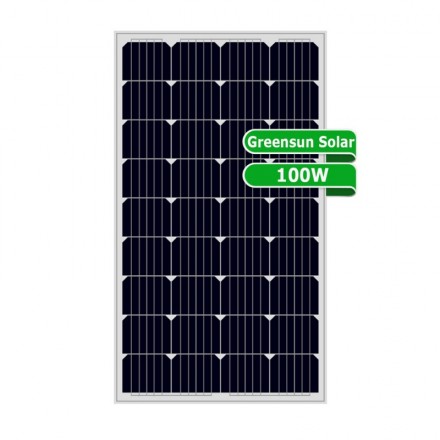

Small Solar Panel 5W 10W 20W 30W 50W 60W 80W Monocrystalline PV Module 12V 24V 36Cells
PV Moduel | GSM5W-36 | GSM10W-36 | GSM20W-36 | GSM30W-36 |
| Rated Maximum Power(Pmax) [W] | 5W | 10W | 20W | 30W |
| Open Circuit Voltage(Voc) [V] | 22.64 | 22.64 | 22.58 | 22.2 |
| Maximum Power Voltage(Vmp) [V] | 18.57 | 18.57 | 18.82 | 17.8 |
| Short Circuit Current(Isc) [A] | 0.29 | 0.58 | 1.19 | 1.801 |
| Maximum Power Current(Imp) [A] | 0.27 | 0.54 | 1.08 | 1.686 |
| Weight (kg) | 0.7 | 1.2 | 2.3 | 2.5 |
| Module Dimension(mm) | 260*210*17 | 250*360*17 | 350*480*17 | 350*540*25 |
