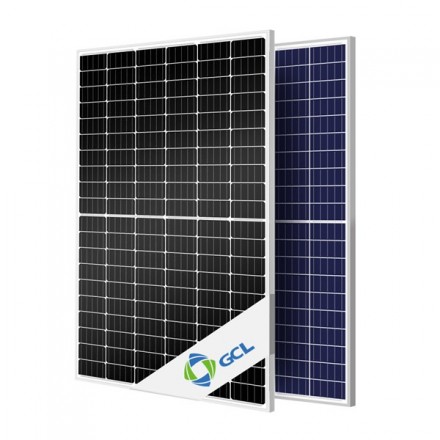

GCL 330W Solar Panel Half Cell 120cells Monocrystalline Solar Module 330Watt CSA UL Tier 1 Brand
Specification for Half-cut Cells Solar Panel Monocrystalline
Product Description ：
PV Module | GCL - M3/60H | ||||
| Rated Maximum Power(Pmax) [W] | 320W | 325W | 330W | 335W | 340W |
| Open Circuit Voltage(Voc) [V] | 39.85 | 40.15 | 40.44 | 40.71 | 40.98 |
| Maximum Power Voltage(Vmp) [V] | 33.06 | 33.44 | 33.80 | 34.16 | 34.52 |
| Short Circuit Current(Isc) [A] | 10.12 | 10.16 | 10.20 | 10.24 | 10.28 |
| Maximum Power Current(Imp) [A] | 9.68 | 9.72 | 9.76 | 9.81 | 9.85 |
| Module Efficiency [%] | 19.0 | 19.3 | 19.6 | 19.9 | 20.2 |
| Dimensions | 1686× 1000 × 35mm | ||||
| Junction Box | IP68 | ||||
| Warranty | 12 years limited product warranty, 25 years limited linear power warranty. | ||||
| Weight | 18.8Kg | ||||
