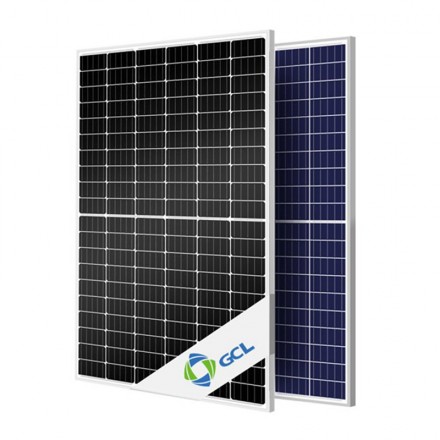

GCL 400Watt 144cells Monocrystalline Solar Panel 400W Mono Solar Moduel CSA UL Certifciate
Specification for Half-cut Cells Solar Panel Monocrystalline
Product Description :
PV Module | GCL - M3/72H | ||||
| Rated Maximum Power(Pmax) [W] | 385W | 390W | 395W | 400W | 405W |
| Open Circuit Voltage(Voc) [V] | 48.03 | 48.33 | 48.63 | 48.93 | 49.23 |
| Maximum Power Voltage(Vmp) [V] | 39.57 | 39.92 | 40.27 | 40.61 | 40.96 |
| Short Circuit Current(Isc) [A] | 10.25 | 10.29 | 10.33 | 10.36 | 10.39 |
| Maximum Power Current(Imp) [A] | 9.73 | 9.77 | 9.81 | 9.85 | 9.89 |
| Module Efficiency [%] | 19.2 | 19.4 | 19.7 | 19.9 | 20.1 |
| Dimensions | 2010× 1000 × 35mm | ||||
| Junction Box | IP68 | ||||
| Warranty | 12 years limited product warranty, 25 years limited linear power warranty. | ||||
| Weight | 23.1Kg | ||||
