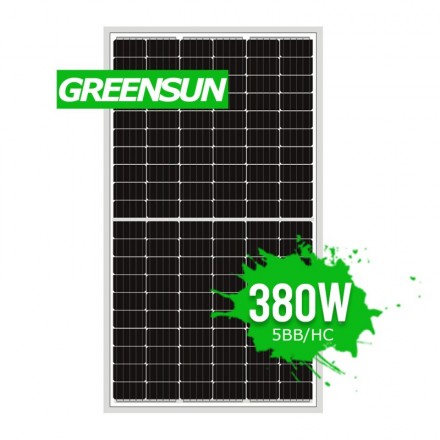

120cells Half Cut PV Module 350w 360w 370w 380w Solar Panel 9BB Mono
Specification of 9BB Half Cut Solar Panel 120cells Monocrystalline
| PV Module | GSM350-120 | GSM360-120 | GSM370-120 | GSM380-120 |
| Rated Maximum Power(Pmax) [W] | 350 | 360 | 370 | 380 |
| Open Circuit Voltage(Voc) [V] | 40.5 | 40.9 | 41.3 | 41.7 |
| Maximum Power Voltage(Vmp) [V] | 33.3 | 34.7 | 36.1 | 37.5 |
| Short Circuit Current(Isc) [A] | 11.02 | 11.2 | 11.38 | 11.56 |
| Maximum Power Current(Imp) [A] | 10.52 | 10.69 | 10.86 | 11.03 |
| Module Efficiency [%] | 19.0 | 19.6 | 20.2 | 20.6 |
| Power Tolerance | 0~+5W | |||
| Temperature Coefficient of Isc(α_Isc) | +0.058%/℃ | |||
| Temperature Coefficient of Voc(β_Voc) | -0.330%/℃ | |||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.400%/℃ | |||
| STC | Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G | |||
| Size | 1776*1052*35mm | |||
| Weight | 20kg | |||
