| Price: | Negotiable |
| Min.Order: | 1 |
| Supply | 910 |
| Delivery: | Shipment within 1 days since the date of payment |
| Address: | |
| Valid until: | Never Expire |
| Updated on: | 2024-01-08 15:22 |
| Views: | 408 |
Changjiang West Road, Shushan District, Hefei, China

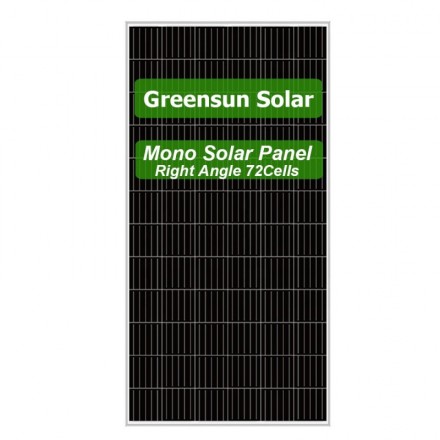

158mm x 158mm Mono Solar Panel 60cells 380watt 390watt 400watt PERC PV Modules
Specification of Full Square Mono 72cells Solar Panel
| PV Module | GSM380-72 | GSM390-72 | GSM400-72 | GSM405-72 |
| Rated Maximum Power(Pmax) [W] | 380 | 390 | 400 | 405 |
| Open Circuit Voltage(Voc) [V] | 48.82 | 49.3 | 49.8 | 50.1 |
| Maximum Power Voltage(Vmp) [V] | 40.58 | 41.1 | 41.7 | 41.9 |
| Short Circuit Current(Isc) [A] | 9.75 | 10.12 | 10.32 | 10.42 |
| Maximum Power Current(Imp) [A] | 9.39 | 9.49 | 9.60 | 9.67 |
| Module Efficiency [%] | 19.16 | 19.67 | 20.17 | 20.42 |
| Power Tolerance | 0~+5W | |||
| Temperature Coefficient of Isc(α_Isc) | +0.058%/℃ | |||
| Temperature Coefficient of Voc(β_Voc) | -0.330%/℃ | |||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.400%/℃ | |||
| STC | Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G | |||
| Size | 1665*1002*35mm | |||
| Weight | 18.5kg | |||
