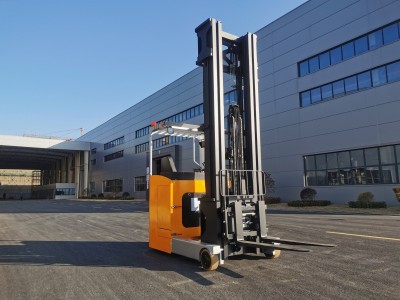

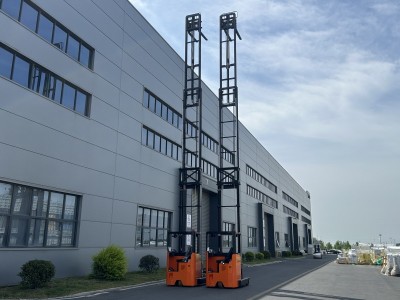

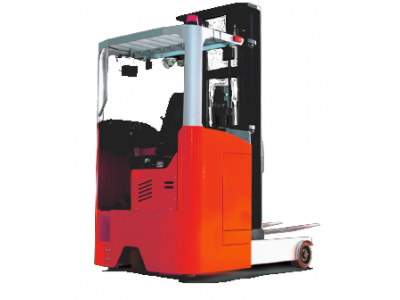

Reach Forklift 1.5t 2t 2.5t 3t CQDE15-40S Electric Reach Truck 48V Warehouse Equipments Optional Side Shifter

$48502.36/sets

Rated load capacity: 2000kg
Lift height: 12000mm
Forks dimensions: 40/120/1070mm
Price: 48502.36Dollar/sets
Min.Order: 1 sets
Supply 1000 sets
Delivery: Shipment within 30 days since the date of payment
Address: China Anhui
Valid until: Never Expire
Updated on: 2025-07-16 10:17
Views: 3
Verified Supplier

South Second Ring Road, Shushan District, Hefei City, Anhui Province


Model

CQDE15-45S

CQDE20-45S

CQDE20H-120S

Operation type

Seated type

Seated type

Seated type

Rated load capacity

1500kg

2000kg

2000kg

Load center distance

500mm

500mm

500mm

Self weight with battery

3100kg

3200kg

5390kg

Wheel type

PU

PU

PU

Front wheel

Ø267*114

Ø267*114

Ø267*114

Driving wheel

Ø382*142

Ø382*142

Ø382*142

Wheel tread, front wheel

1180mm

1180mm

1329mm

Lowered mast height

2105mm

2105mm

5136mm

Free lift

1500mm

1500mm

4020mm

Lifting height

4500mm

4500mm

12000mm

Mast height, extended

5465mm

5465mm

12995mm

Overhead guardrail height

2180mm

2180mm

2180mm

Vehicle length

2477mm

2477mm

2565mm

Vehicle width

1270mm

2180mm

1270/1460mm

Forks size

35/100/1070mm

40/122/1070mm

40/122/1070mm

Fork spread

210-705mm

244-705mm

260-840mm

Min.ground clearance

70mm

70mm

70mm

Stacking aisle width

2964mm

3007mm

3010mm

Min.turning radius

1800mm

1900mm

1922mm

Max. travelling speed,

unladen/full-loaded

14/14 km/h

14/14 km/h

14/14 km/h

Lift speed, unladen/full-loaded

0.330/0.245 m/s

0.450/0.340 m/s

0.450/0.340 m/s

Lower Speed (unladen/full-loaded)

0.350/0.380 m/s

0.360/0.420 m/s

0.360/0.420 m/s

Max.gradeability

10%

10%

10%

Driving brake

Electromagnetic

Electromagnetic

Electromagnetic

Drive motor power

6.5AC

6.5AC

6.5AC

Lift motor power

7.5AC

12AC

15AC

Battery type

Lead-acid

Lead-acid

Lead-acid

Battery voltage/nominal capacity

48V/300Ah

48V/400Ah

48V/400Ah

Charger

48V/40A

48V/50A

48V/50A

Type of Drive Control

AC

AC

AC

Sound level at the driver's ear acc. to EN12053

75dB(A)

75dB(A)

75dB(A)
