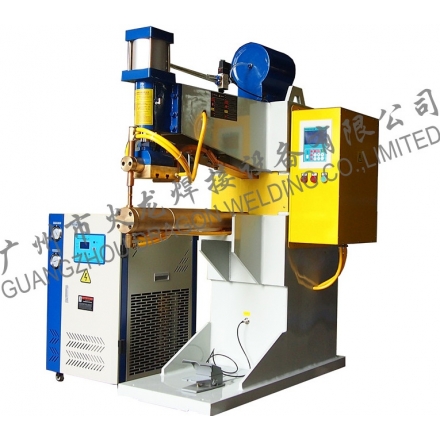

MF Series Medium Frequency Inverter DC Spot Welding Machine

Price:	Negotiable
Min.Order:	1
Supply	819
Delivery:	Shipment within 1 days since the date of payment
Address:	China Guangdong
Valid until:	Never Expire
Updated on:	2024-07-01 14:30
Views:	692

Send Enquiry

GUANGZHOU DRAGON WELDING CO.,LIMITED

Kaili Industrial Zone,No.389, Guangzhu Road, Dagang Street, Nansha

All Products Contact Manufacturer

Description

Main Features
High quality,high efficiency,98% power factor,three-phase input load balancing,the impact on the user grid greatly reduced,DC input current,smooth,inductance is zero,1000HZ working frequency,time control precision is 1MS;High-strength body structure,good rigidity,direct pressurizing mechanism,linear bearings used in the guiding structure enable good mobility;Adopt high-speed microprocessors,use intelligent optimal calculation method,LCD interface,can save 60sets welding schedule numbers,There are functions of switch display in both Chinese and English,provide external BCD call interface,system fault diagnosis alarm automatically.etc;Specially suitable for welding higher conductive rate of material(such as aluminum,copper,silver and so on) and much more thicker workpiece,widely used in automobile,aerospace and other high request products and industry;Main Technical Parameters

Parameter/Model	MF-18KA	MF-25KA	MF-32KA	MF-40KA	MF-60KA	MF-80KA
Rated Voltage	3相，交流（AC）, 380-----415----480V,50/60HZ.
Rated Capacity	50KVA	90KVA	150KVA	170KVA	250KVA	300KVA
Rated Duty Cycle	50%	50%	50%	50%	50%	50%
Max Welding Current	18000A	25000A	32000A	40000A	60000A	80000A
Electrode Stroke	60MM
Welding Arm Spacing	380MM
Air Source Pressure	0.6MPa
Cooling Water Flow	16L/Minute	25L/Minute	35 L/Minute	45L/Minute
