Performance Range

Max. Flow: 4.8m3/h
Max. Head: 119m

Application Limits Max. ambient temperature< 40℃; Sand content (in mass fraction) up to 0.01%; Hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L; pH 6.5 to 8.5; Maximum: 20m below the static water table. CertificateApplication FieldsBuilding/construction work/domestic water supply; Irrigation and small water work; Landscaping; Water conservancy system; Factory.Features Treble seal shield for excellent sand prevention; High efficiency and lower power consumption; Single phase motor with built in capacitor & thermal mode protector; Pump sleeve with screw thread, single stage floating impellers; Installation in 4" or larger boreholes; Optional Available On Request

No

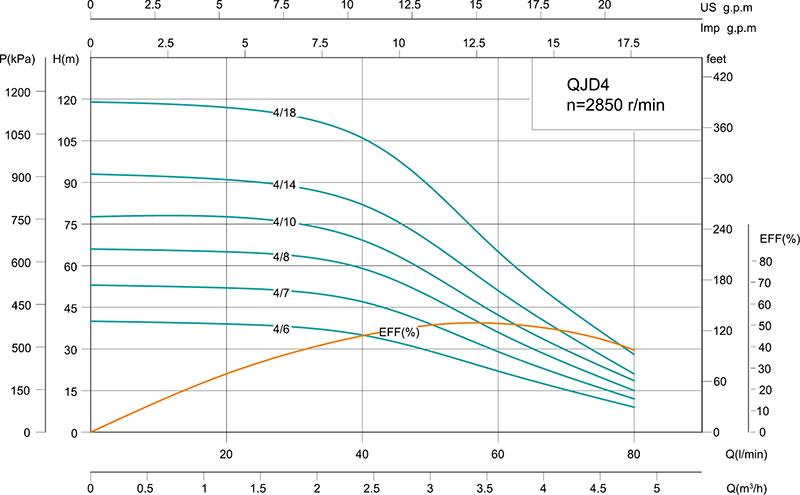

Performance Curve
