Performance Range

Max. Flow: 68m3/h
Max. Head: 33m

Application Limits Maximum liquid temperature +40℃pH level from 6.5-8.5Maximum sand content is 0.1%. Passage of suspended solids up to 0.2mm Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 380VAC for three phase with the range from -10% to 10%.Immersion depth from 0.5m-5m Certificate Applications Fields Suitable for transferring water without abrasive particles Suitable for well water lifting, farm irrigation, garden irrigation and living water supply Suitable for industrial water eliminating, construction water supply and drainage, breeding industry water supply and drainage, etc. Features New industrial design, lower motor temperature rise. Optimized motor design, improved efficiency. Alloy impeller of high performance engineering plastics or aluminum. Optional Available On Request

Other voltage or frequency is 60Hz

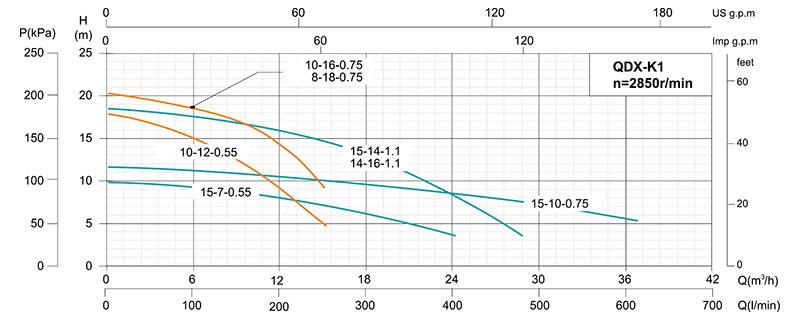

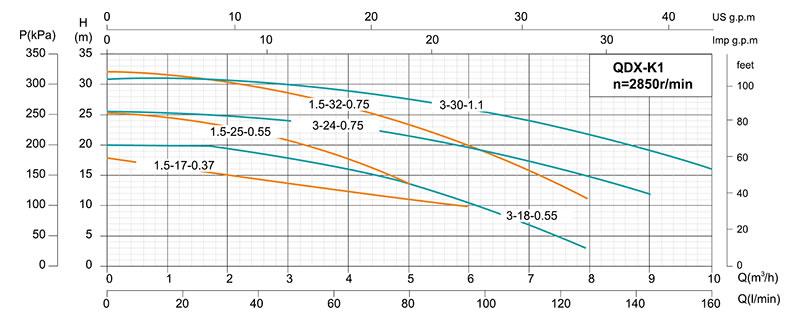

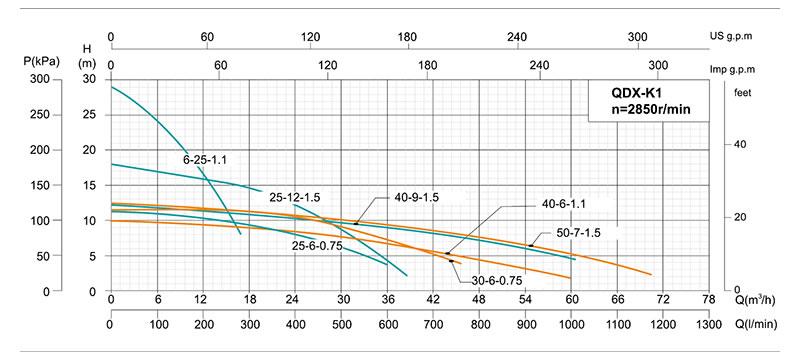

Performance Curve
