PRODUCT DEscriptION

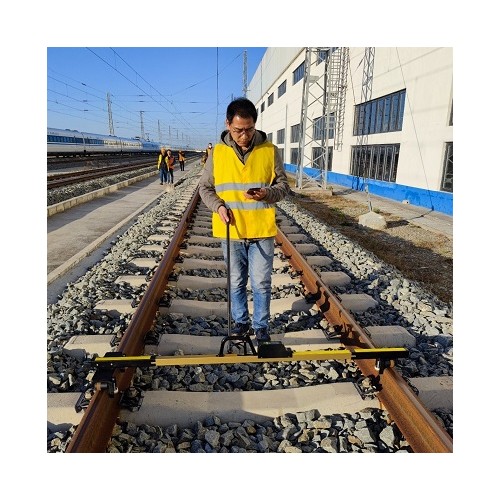

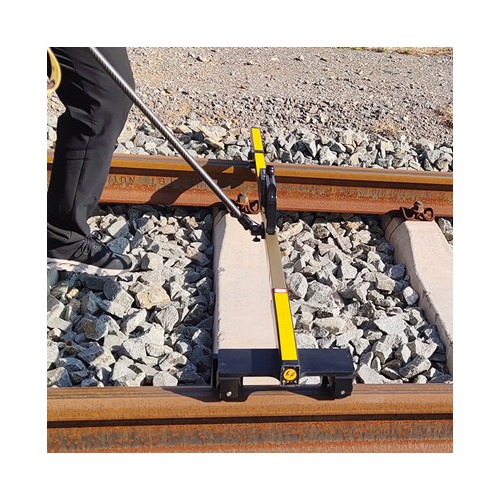

The portable rolling track gauge is designed for measuring the track gauge and super-elevation.The lightweight ,reliable and easy to use device offers unique measurement accuracy.
The software system support for storing and analyzing the measuring data. It can be used for track inspection and rail maintenace. It is easy to carry, and night-time and tunnelwork, legible even in direct sunlight are supported which is an ideal measuring tool for track fine-tuning, track construction,inspection and track laying .
BENEFITS
The lightweight ,reliable and easy to use device offers unique measurement accuracy. It is easy to carry, and night-time and tunnel work.
TECHNICAL DATA
Model (1435mm) | GJC-JJG0 |
Track gauge(mm) | 1410-1470 |
Superelevation measuring range | -185~+185 |
Display mode | OLED display and hand-held terminal display |
Supply Voltage | DC3.4V～5.2V (rechargeable battery) |
Superelevation division value | 0.05 |
Working temperature | -30℃～+55℃ |
Insulation performance | ＞1MΩ |
Track gauge division value | 0.01mm |
Superelevation division value | 0.05mm |
Track gauge max indication error | ≤±0.25mm |
Superelevation max indication error | ≤±0.3mm |
Length | ＜1700mm |
Net Weight | ≥6.5kg |
