Description
Introduction on Technical Process
The biomass feedstock is sent to the gaisfier intermittently through the feeder system to have pyrolysis and gasification reaction with the air enterting from the bottom. The energy generated can help maintain the stable reaction within the gasifier and turn the feedstock into biogas and biochar in an efficient way. The biogas will be sent from the top of the gasifier to the combustor for heat supply, while the biomass ash will be sent to the bottom ash bucket for cooling through the tower-type grate and dicharged outside the gasifier.
Main Parameters
Feedstock input: ≤10t/h
Biogas output: ≤21,000Nm3/h
Max. saturated steam output of single unit: 35t/h
Max. power generation of single unit: 7MW
Feedstock Applicable
Bark, film faced plywood, palm EFB/straw briquette, wood and bamboo chips, etc;
Particle size: 3-8cm
Moisture: ≤40%
Conversion Ratio
Gasification efficiency: ≥80%
Application
Alternative to natural gas, coal and other fossil fuels to supply steam, heat and power for energy-using enterprises such as chemical plant, printing and dyeing mill, package plant, wood-working factory, smelting plant and foodstuffs factory; the biochar can be made into high-value products like activated carbon, machine-made carbon, carbon-based fertilizer, thermal insulation material, and capacitor carbon/silicon-carbon black
Packaging & Logistics
RTS
Payment details are for reference only. Please contact supplier for exact terms.
Company Introduction
Hefei Debo Bioenergy Technology
Hefei Debo Bioenergy Technology Co., Ltd., founded in 2018, headquartered in China, is a leading manufacturer and brand name in the field of biomass gasifiers. We are expert in designing and manufacturing of the biomass gasification equipment and providing renewable and clean energy solutions best possible for communities to achieve their net zero goals. As a result of nearly two decades of dedication, perseverance and step-by-step revolutionary innovations in this industry, we have been granted more than 100 patents for inventions and widely recognized by our clients we have cooperated with. Meanwhile, we feel deeply honored and grateful to have the opportunities to work with them together on making contributions to building a greener and more liveable world for all.
Besides, since we have established "Anhui Provincial Academician Workstation for Biomass Gasifier" where three academician teams have been on board with the approval of Anhui Provincial Department of Science and Technology, we are well-positioned to provide the state-of-the-art equipment and solutions for all our clients.
Contact Information
Hefei Debo Bioenergy Technology
contact_person
Darren
Address
No.75-1 Science Avenue, High Tech District, Hefei, Anhui Province, China
Website
https://www.deboglobal.com/send_inquiry
send_inquiry_description
Related Listings

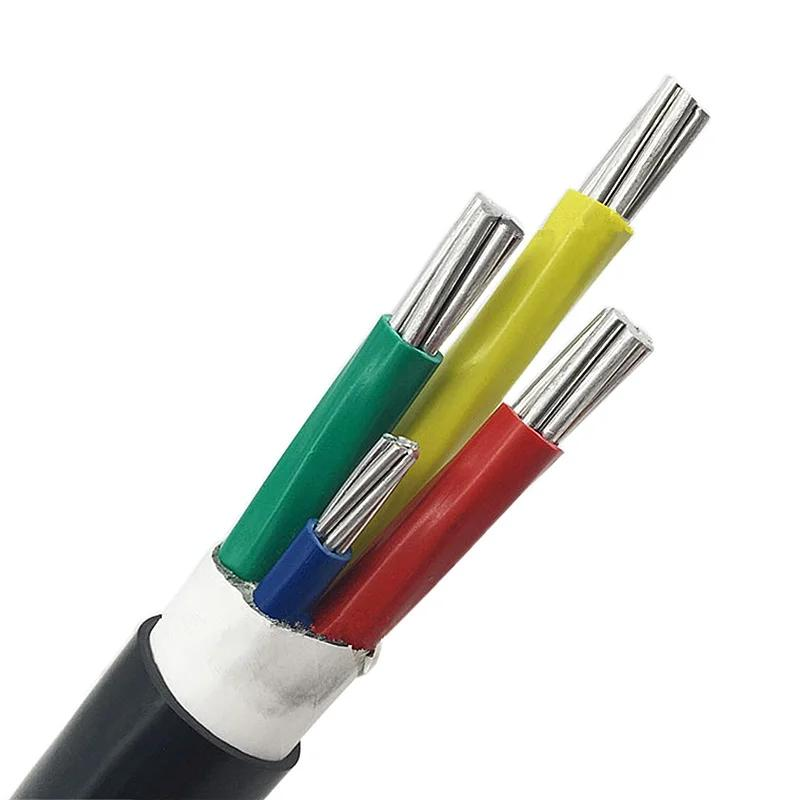

Aluminum core, low-smoke emission, halogen-free：WDZ-YJLY / WDZN-YJLY
$1.00 – $10.00 FOB / Piece/Pieces

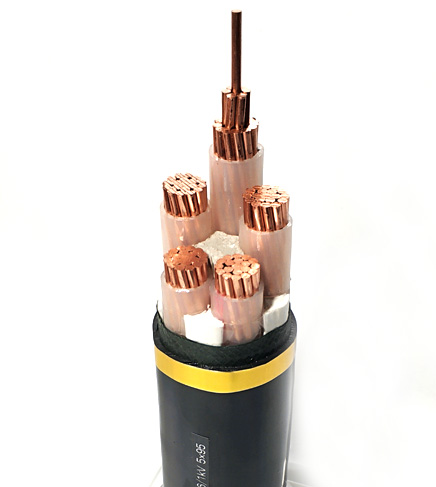

Core made of copper; low-smoke emission; halogen-free.WDZ-YJY / WDZN-YJY
$1.00 – $10.00 FOB / Piece/Pieces

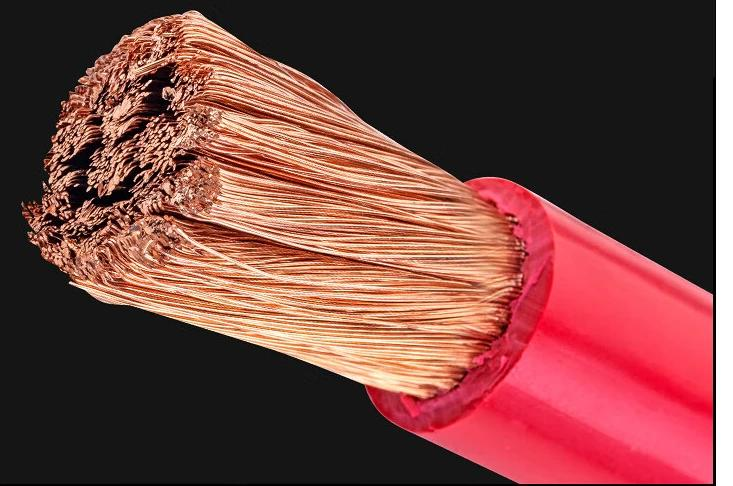

RV Single-core, multi-strand flexible wire (uninsulated electronic flexible wire)
$1.00 – $10.00 FOB / Piece/Pieces

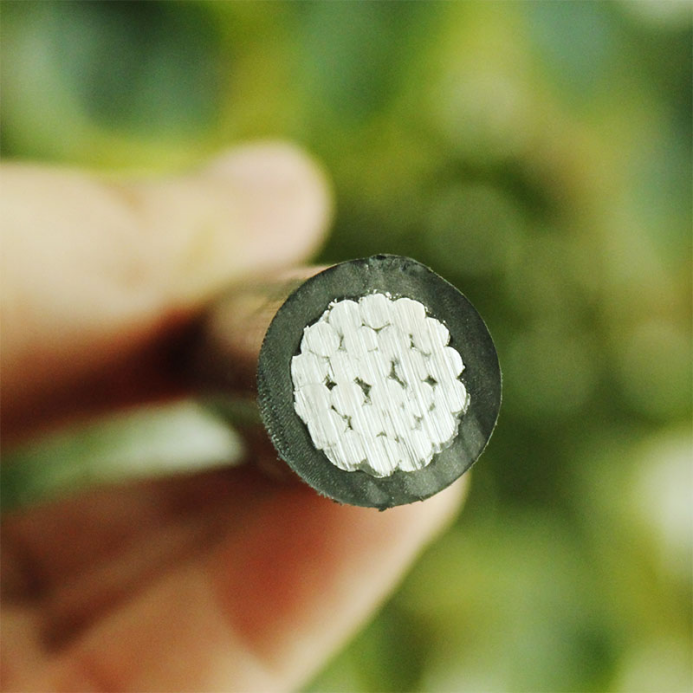

JKLYJ（Aluminum-core overhead insulated wire, the mainstream product on the market）
$1.00 – $10.00 FOB / Piece/Pieces
YZB Medium-sized Flat Rubber-Sheathed Flexible Cable (Specifically designed for flat-wire electric tools)
$1.00 – $10.00 FOB / Piece/Pieces

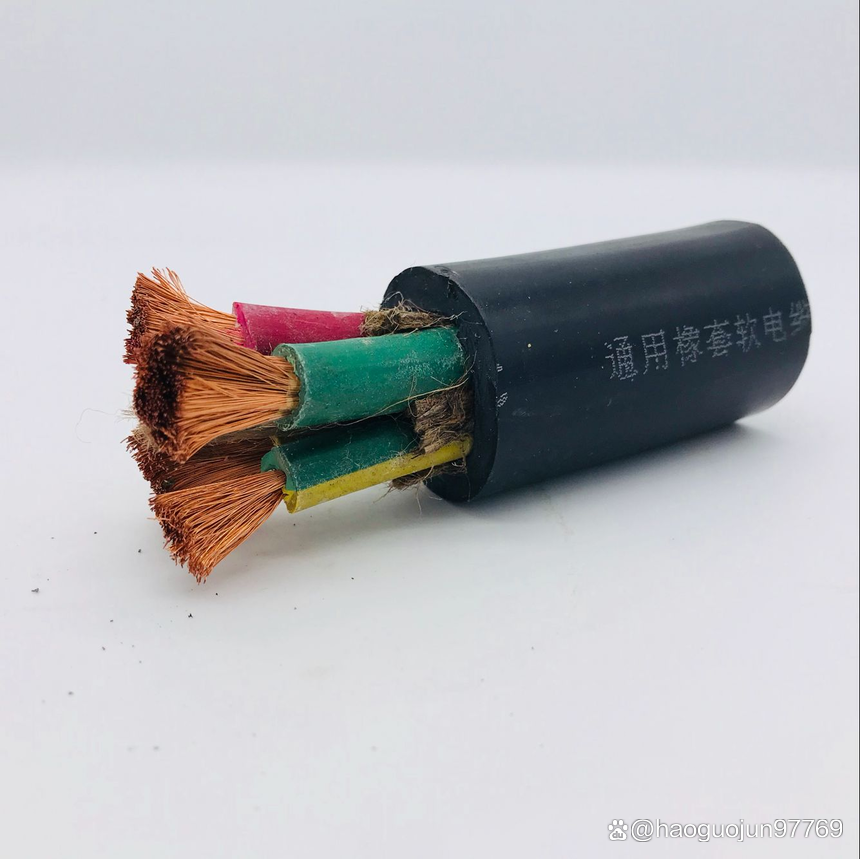

YZ Medium-sized circular rubber-sheathed flexible cable (for power tools/miniature equipment)
$1.00 – $10.00 FOB / Piece/Pieces

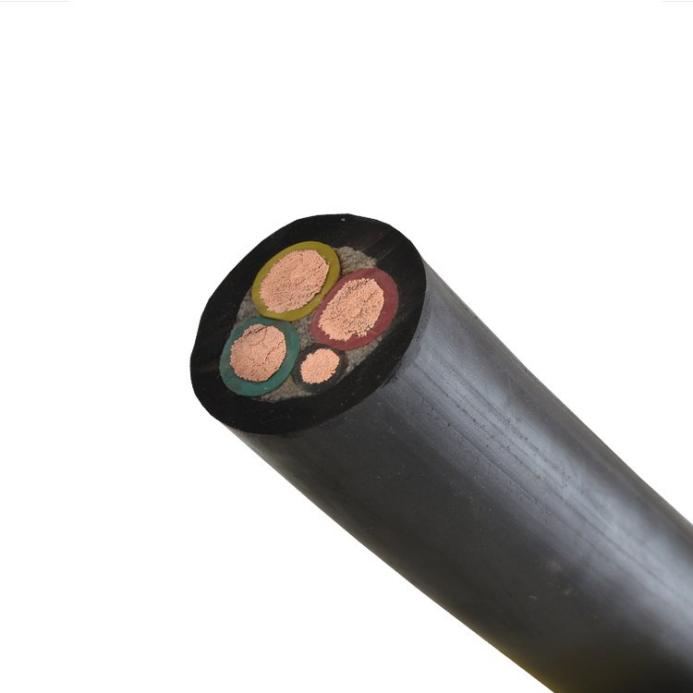

YC Heavy-Duty Universal Rubber-Sheathed Flexible Cable (For Indoor High-Load Applications)
