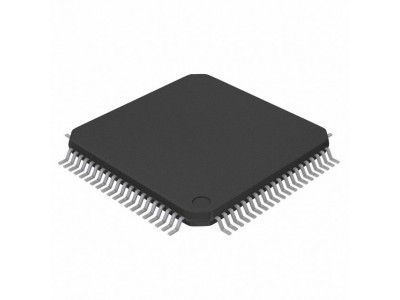

The UPSD3354D is a highly integrated system-on-chip that combines a powerful 80C51 MCU, flexible CPLD logic, USB interface, and numerous standard communication peripherals into a single chip. This unique combination provides a powerful single-chip solution for embedded applications that require custom hardware logic and microprocessor control.

Main features:

Core processor:

based on the industry-standard 80C51 compatible core (also known as 8051 or MCS-51).

The operating frequency can reach up to 40 MHz, providing good 8-bit processing performance.

Memory:

Flash program memory: Usually equipped with 64 KB of Flash memory for storing user program code. The Flash is usually divided into two independent storage areas (Dual Bank), allowing the program to be updated on the run (IAP - In Application Programming), which is very useful for firmware upgrades.

SRAM data memory: Integrated 2 KB of SRAM for variable storage and stack operations when the program is running.

Additional non-volatile memory: Some models (or through configuration) may contain a small capacity EEPROM or additional Flash sectors for storing configuration parameters or data.

Programmable logic (CPLD):

This is one of the most significant features of the uPSD33xx series. A CPLD (complex programmable logic device) is integrated inside the chip.

Typically provides 3000-gate level logic resources (specific gate count may vary slightly depending on suffix model).

Allows users to design custom digital logic circuits using hardware description languages (such as VHDL or Verilog) or schematic input.

Function:

Implement high-speed, parallel hardware logic functions (state machines, counters, decoders, interface conversion, etc.).

Flexibly expand and customize the MCU's peripheral interfaces (for example, implement additional UARTs, SPIs, PWMs, timers, or custom I/O control logic).

Reduce the need for external logic chips, simplify PCB design, reduce costs, and improve system reliability.

Share the MCU's tasks with high real-time requirements, allowing the MCU to focus on more complex control algorithms.

Rich peripheral interfaces:

USB 2.0 Full-Speed Device Controller: Supports 12 Mbps USB communication (external PHY chip required).

I²C (Inter-Integrated Circuit) interface: Used to connect low-speed peripherals such as sensors and EEPROM.

UART (Universal Asynchronous Receiver/Transmitter): Usually provides 2 UART channels for serial communication (such as RS-232, RS-485).

SPI (Serial Peripheral Interface): High-speed synchronous serial interface for connecting memory, display, ADC/DAC, etc.

Programmable Counters/Timers: Multiple general-purpose timers/counters.

Watchdog Timer (WDT): Improve system reliability.

Programmable I/O (PIO): Provides a large number of programmable general-purpose input and output pins (usually more than 40), the functions of which can be flexibly configured through CPLD and registers.

ADC (Analog-to-Digital Converter): Some models may integrate ADC (but the standard UPSD3354D mainly highlights digital features, ADC is not its strong point or may not be integrated).

Pulse Width Modulation (PWM): PWM output can be achieved through CPLD or timer.

Interrupt controller: Manages multiple interrupt sources.

Low power features:

Supports multiple low power modes (such as Idle, Power Down), which is helpful for battery-powered or energy-saving applications.

Main application areas:

Embedded systems that require complex logic control and microprocessor management.

Industrial automation and control (PLC I/O modules, sensor interfaces, motor control auxiliary logic).

Communication interface conversion and bridging.

Medical equipment (requires highly customized control logic).

Consumer electronics (devices that require flexible I/O and interface customization).

8-bit systems that require USB connectivity.

Replace the traditional "MCU + external CPLD/FPGA" solution to reduce costs and improve integration.
