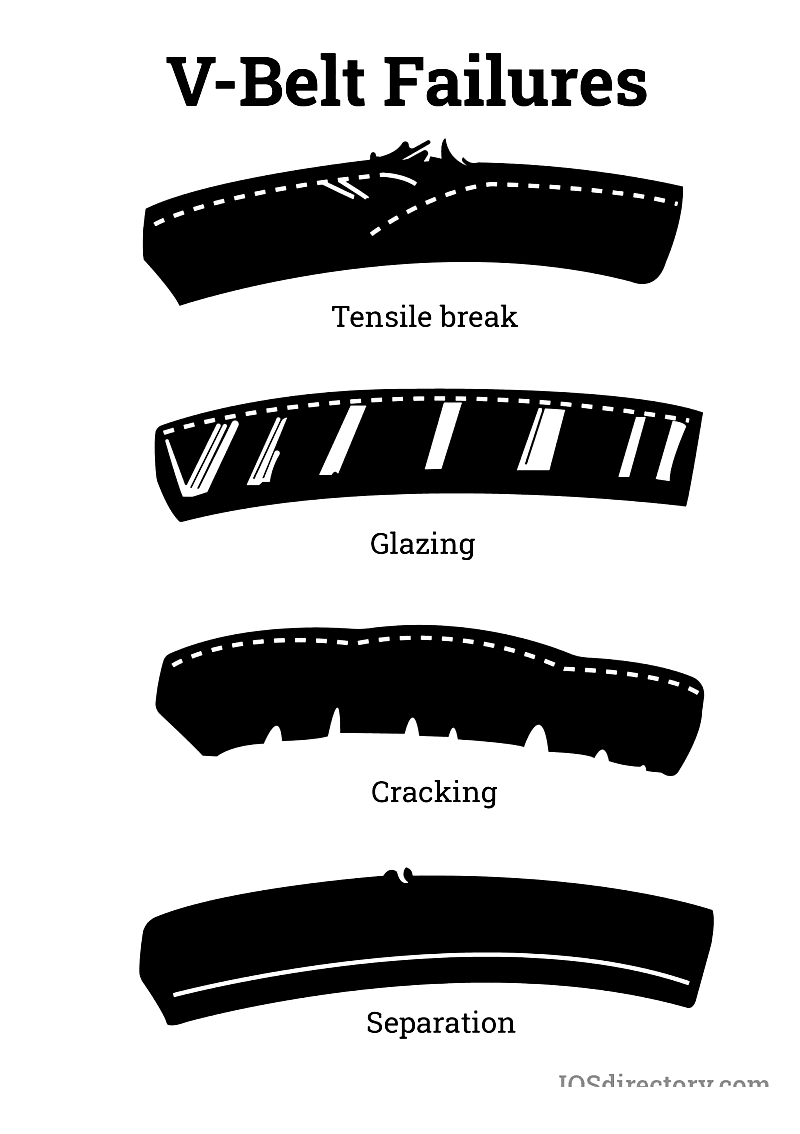

Chapter 1: Understanding the V-Belt
The V-belt serves as a vital component for power transmission between shafts. Its distinctive trapezoidal shape ensures secure fitting within a shaft's sheaves. This precise design allows V-belts to fit snugly into grooves, enhancing contact and stability.

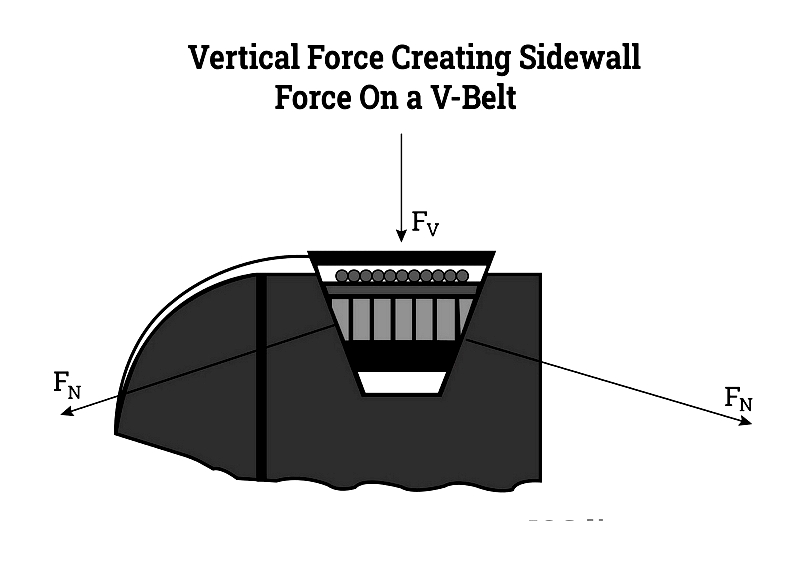

When tension is applied, vertical forces act perpendicular to the belt's top surface, pressing its sides against the sheave grooves. Increased tension wedges the belt more tightly, boosting friction between belt and sheave surfaces. This stronger grip improves torque transfer while reducing power loss from slippage.
The ability to handle heavier loads results from multiple frictional forces. A V-belt's efficiency largely depends on how securely it engages with sheave grooves under tension.

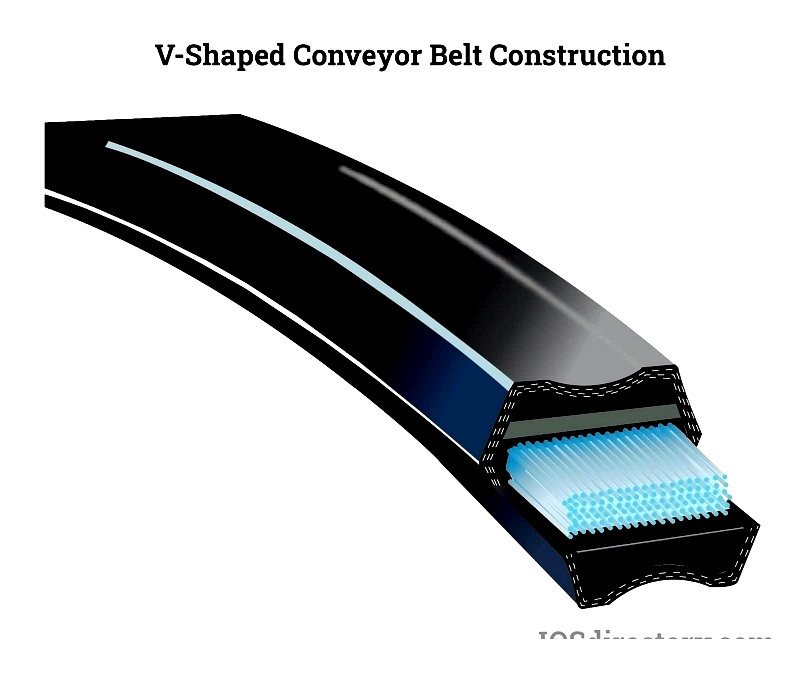

Manufacturers produce V-belts from synthetic and natural rubber blends, ensuring the flexibility and resilience needed for sheave conformity. These belts are formed by compressing fibrous tensile cords into their characteristic V-shape, providing exceptional strength and durability. Some V-belt types feature additional cogs to improve bending resistance and lower operating temperatures.
Chapter 2: Belt Drive Overview
Belt drives efficiently transmit rotary motion and power between parallel rotating shafts. These systems form the backbone of modern power transmission technology, widely used in industrial machinery, automotive applications, agricultural equipment, HVAC systems, and manufacturing processes. A belt drive system consists of a continuous looped belt mounted around pulleys attached to driving and driven shafts. Proper pulley spacing ensures optimal belt tension, while material composition and surface contact generate the friction necessary for reliable grip and torque transmission.

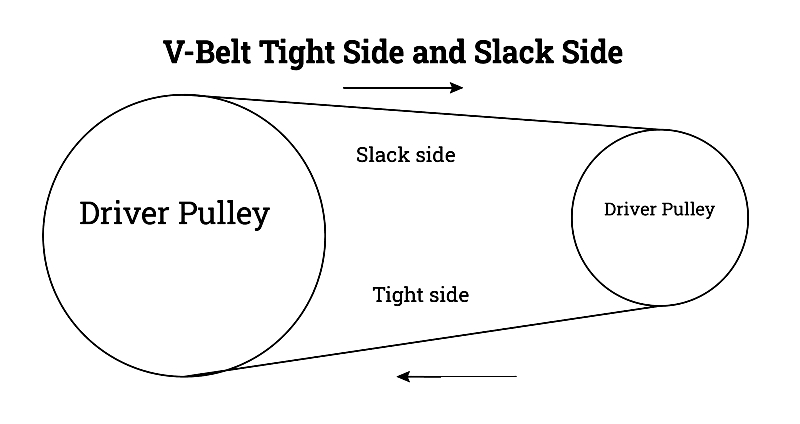

During operation, the driver pulley rotates and increases tension on the belt's "tight side," applying tangential force to the follower pulley. This transfers torque and rotational force to the driven shaft. The opposite "slack side" maintains reduced tension, balancing the system and preventing excessive stretching or slippage. This arrangement enables smooth, flexible power transmission for diverse industrial applications.
Various belt drive types cater to specific applications and performance requirements. Early flat belt designs used leather or woven fabric, historically employed in low-power setups like vintage farm equipment and mining conveyors. However, flat belts tend to slip in high-torque or high-speed environments, limiting their industrial suitability.
Modern belt drive technology has significantly improved performance, reliability, and service life. Contemporary flat belts incorporate advanced synthetic materials like extruded polyamide, polyester, and aramid fibers, offering superior tensile strength, wear resistance, and reduced energy loss. These innovations enable flat belts to operate at higher speeds, support heavier loads, and improve overall system efficiency.

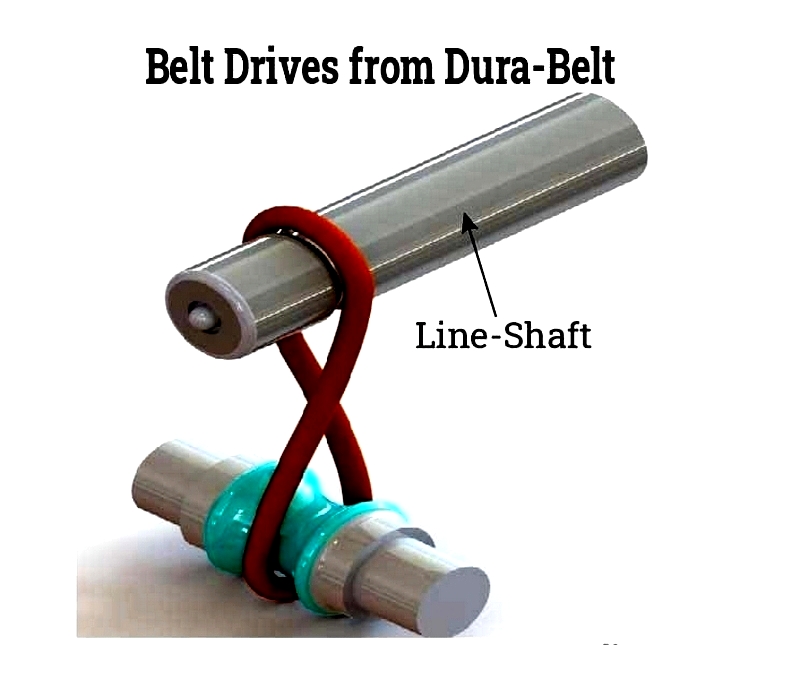

Historically, V-grooved pulleys paired with cotton or hemp rope drives prevented slippage, facilitating power transmission over long distances. This development led to round belts made from high-performance rubber, nylon, or urethane compounds, providing enhanced flexibility and durability for industrial applications.

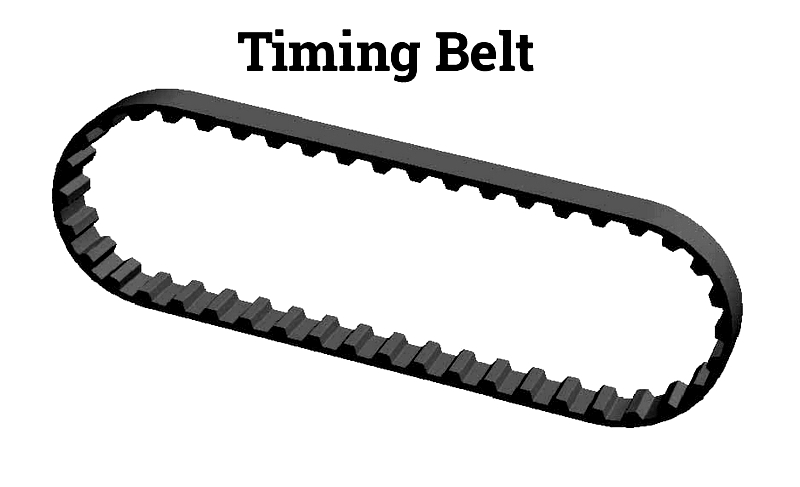

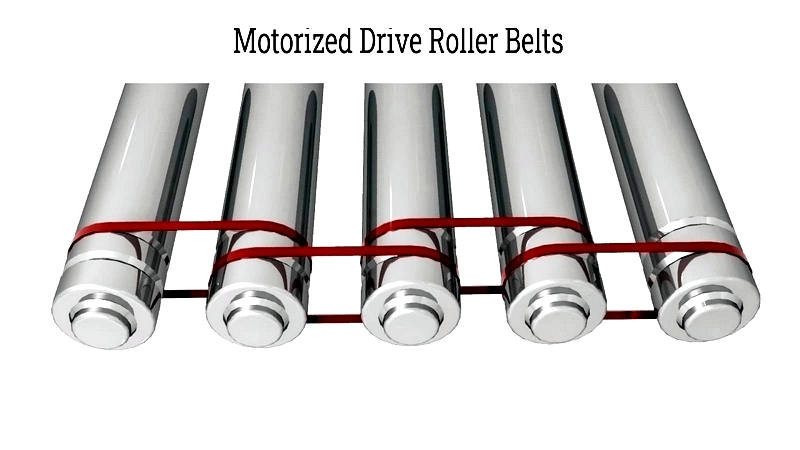

The most significant advancement in belt drive engineering came with durable elastomeric compounds like natural rubber, synthetic rubber, and engineered polymers. These materials enabled advanced belt types including V-belts, ribbed belts, multi-groove belts, and timing belts. These innovations address slippage, alignment, and power loss issues, making them essential for conveyor systems, automotive engines, and precision equipment requiring reliable timing.
Belt drives offer several advantages over alternative power transmission solutions like gears or chain drives:
- Shock absorption: Friction-based coupling allows belt drives to safely dissipate transient shocks or overloads through controlled slip, protecting sensitive components.
-
Speed and torque adjustment: Systems enable easy modification of operating speed and torque output by varying pulley diameters. The mechanical advantage is given by:

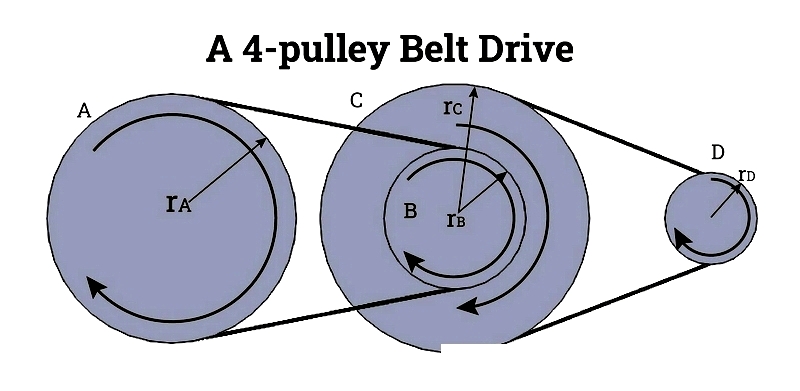

begin{equation} MA = frac{τ_b}{τ_a} = frac{r_b}{r_a} = frac{ω_b}{ω_a} end{equation}
Where MA represents mechanical advantage, τ denotes torque, r indicates pulley radii, and ω signifies angular speeds (under ideal conditions).
- Quiet operation: Unlike metal-to-metal contact in gear drives, most belt drives operate quietly with minimal vibration, ideal for HVAC systems and office machinery.
- Cost-effective long-distance transmission: Belt drives present economical solutions for power transmission across extended spans, requiring only additional belt length.
- Non-parallel shaft flexibility: Belt flexibility enables efficient connection between misaligned shafts, valuable in conveyor systems and industrial automation.
-
Reversible rotation: A simple crossed belt configuration can reverse driven shaft rotation without additional gears.
- Pulley alignment tolerance: Systems accommodate minor axial offsets and uneven shaft positioning, allowing multiple pulley configurations.
-
Low maintenance: Most belt drives operate without lubrication, simplifying maintenance and reducing contamination risks in sensitive environments.
However, belt drives have limitations:
- Power loss: Traditional belt drives experience efficiency losses from slippage and flexing, though V-belts and timing belts mitigate these issues.
-
Synchronization limitations: Standard belt drives lack precision for synchronized applications, addressed by toothed timing belts.
- Speed constraints: Efficiency declines at extreme speeds due to stretching and vibration, while low speeds increase slippage risk.
-
Environmental vulnerability: Continuous flexing and abrasion reduce service life, with elastomeric belts degrading under harsh conditions.
- Bearing loads: Proper tensioning is essential, as excessive tension increases radial loads on bearings and shafts.
Selecting the appropriate belt drive system requires evaluating load capacity, speed ratios, distance, environmental conditions, and maintenance needs. Manufacturers offer diverse industrial belt solutions, including custom-engineered systems for automotive, food processing, and materials handling applications. Consulting with belt drive specialists ensures optimal power transmission
