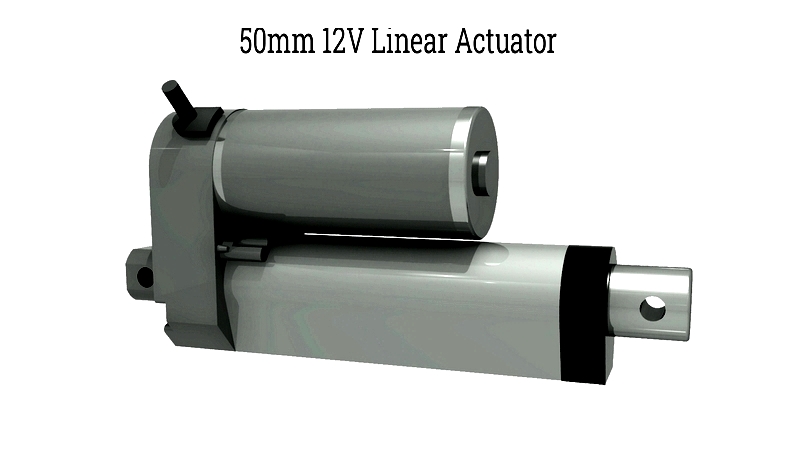

Control electronics may be integrated or external. Force output relates inversely to speed - gear reduction increases force while decreasing speed. Stroke length depends on screw and shaft dimensions. Gear ratios between motor and screw determine speed, while limit switches, encoders, or potentiometers control stroke length. Microswitches at shaft ends provide precise position management.

Chapter 2: Key Considerations for 12V Linear Actuators

This chapter outlines essential design factors for 12V linear actuators, including technical specifications and performance characteristics to evaluate when selecting actuators for industrial automation or motion control applications. Understanding these parameters helps ensure reliable, efficient operation in automation systems, robotics, and manufacturing processes.

• Power Requirements: Power output is fundamental for generating sufficient actuator force to move loads. Required mechanical power correlates directly with load capacity. Manufacturers provide performance graphs detailing force (F), speed (V), and current draw (I) to help select appropriate models for applications like door controls, lifts, or adjustable furniture.

• The duty cycle specifies operational duration within a given period. Heat generation during operation determines duty cycle limits. Adhering to recommended cycles prevents overheating and extends actuator lifespan. Duty cycles vary based on actuator design, age, mechanical load, ambient temperature, and other factors. High-duty models often incorporate specialized motors and thermal protection.




• Actuator efficiency affects energy consumption and performance under load. Ball screw and lead screw actuator efficiencies determine whether braking systems are needed, particularly in vertical applications. Efficiency ratings (mechanical power output divided by electrical input) help optimize power usage and equipment longevity.

Selection Criteria

• Determine required motion type - linear versus rotary - based on application needs. Complex industrial processes may demand precise linear positioning, while simple operations like valve control require basic motion profiles. Consider integration requirements, stroke specifications, and precision levels.

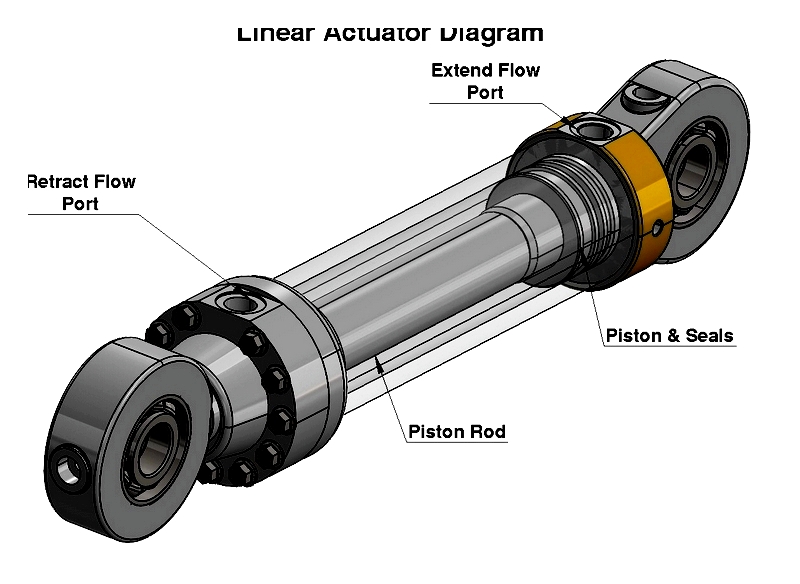

• While electric actuators dominate many applications due to their precision and programmability, alternatives like hydraulic or pneumatic actuators may be preferable where electrical power is unavailable or impractical.

• Speed and load capacity have an inverse relationship - increased load decreases speed. Specifications typically list speed in mm/s or in/s and load capacity in newtons or pounds. Proper sizing for applications like lifting platforms or robotic arms requires balancing these parameters with duty cycle requirements.




• Environmental conditions significantly impact selection. Standard actuators may fail in wet, dusty, or corrosive environments. For specialized applications, consider IP-rated or stainless steel models with appropriate protection levels.
• Precision requirements vary by application. Industries like aerospace or medical technology demand high accuracy, while heavy industrial applications may prioritize robustness over fine positioning.
• Match load capacity to application demands. Manufacturer specifications detail force ratings, stroke limits, and safety factors crucial for system performance and compliance.
• Space constraints may require compact or miniature actuators, or specialized designs like telescoping models. Mounting options like pin-to-pin connections or spherical bearings can facilitate installation in tight spaces.

When selecting 12V linear actuators, review all technical specifications including voltage, peak force, stroke, and speed. Consider duty cycle, precision needs, control options, and mounting requirements. For optimal results, consult experienced suppliers who can provide customized solutions and technical support for diverse industries.

Chapter 3: Varieties of 12V Linear Actuators

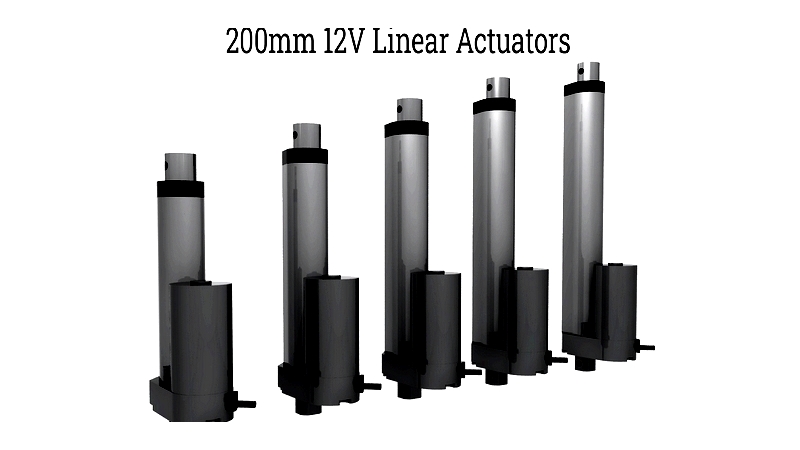

12V linear actuators are versatile electromechanical devices that generate push/pull motion using low-voltage power. Their compact design suits numerous automation tasks across industries. Different types accommodate varying load, speed, and precision requirements while integrating with control systems. Below are the most common 12V linear actuator types and their characteristics.

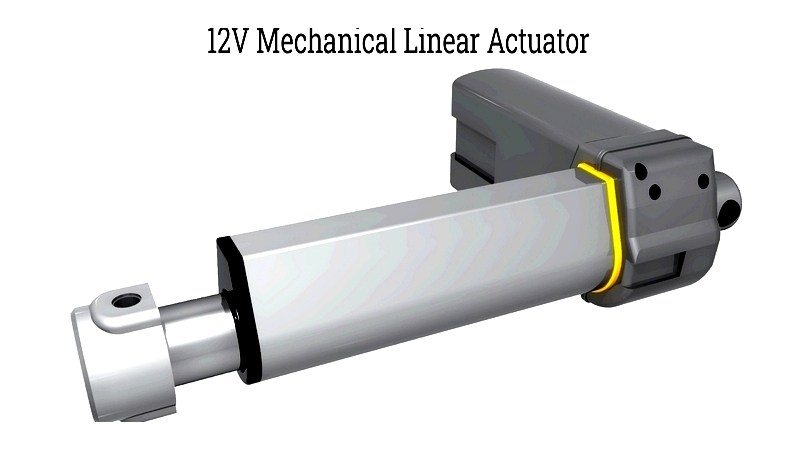

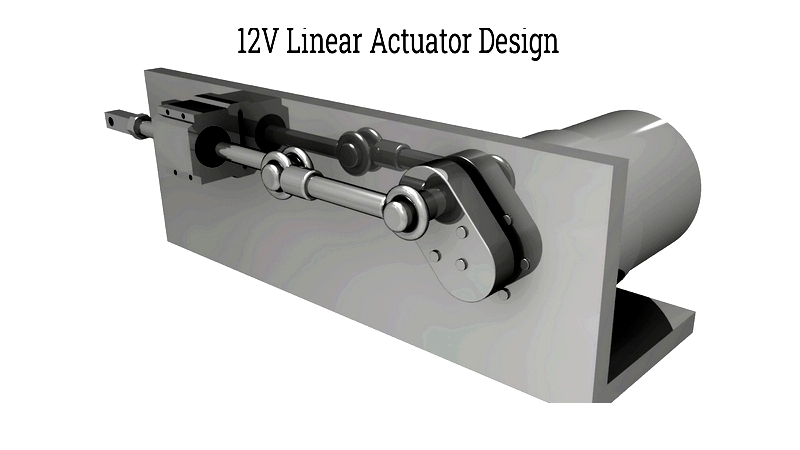

Electro-Mechanical Actuators

These convert rotational to linear motion using screw, belt, rack, or cam mechanisms. Driven by AC or DC motors (12V DC for portable use), screw types employ
